ISCANCAR ID:3247

🛠️ Supports controller diagnostics, such as basic setting, channel adaptation, reading DTCs, clearing DTCs, system login, etc.

📘 Guide Function:

📋 There are many commonly used functions. We have simplified the process so you can follow it more easily.

✨ Special Function:

🔍 OBD PIN reading, adaptation after replacing controller, gateway register, etc.

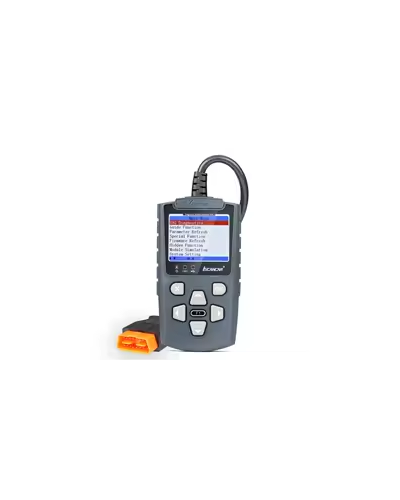

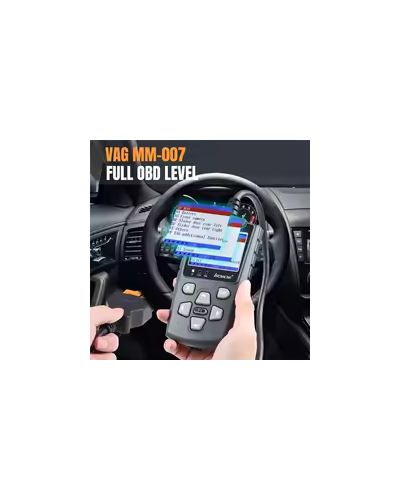

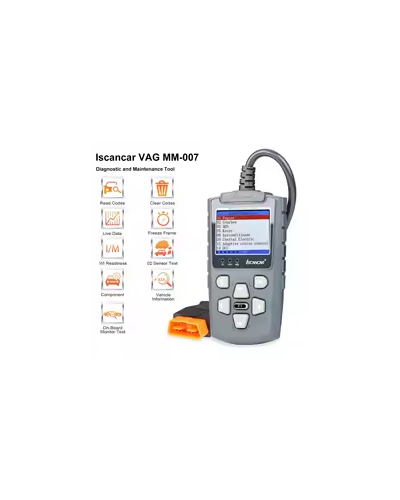

🔧 Iscancar V-A-G MM-007 Diagnostic and Maintenance Tool

📦 PN: XDMM01EN
💻 Hardware version: 2.3.2 (Please use Xhorse Update Kit software to update)
🧠 Software version: V2.3.0
🌐 Language: English

🔧 Iscancar Basic Function:

🛠️ Supports controller diagnostics, such as basic setting, channel adaptation, reading DTCs, clearing DTCs, system login, etc.

📘 Guide Function:

📋 There are many commonly used functions. We have simplified the process so you can follow it more easily.

✨ Special Function:

🔍 OBD PIN reading, adaptation after replacing controller, gateway register, etc.

📝 Write Data Record:

💾 When replacing the new controller, you must write a data record online or the controller will not work properly. Now you can use this diagnostic tool to write data records offline. You can also activate some functions like MKE, etc.

🧪 How to use Iscancar to write data record:

📌 PQ35 gateway 7N0907530AN: activate MKE. After writing data record, you can set MKE on the dashboard.

📌 MQB gateway 5Q0907530AJ: activate MKE. After writing data record, you can set MKE on the dashboard.

📌 PQ35 replace kessy 5K0959434B: before writing data, there's a DTC “no basic setting”, the car can't find keys. After writing data, the DTC disappears and the car can find keys.

📌 MQB replace kessy 5Q0959435A: before writing data, there's a DTC 10478040 (invalid data record), the car can't find keys. After writing data, the DTC disappears and the car can find keys.

📌 MQB front camera 5Q0980653G: before writing data, there's a DTC 0649 (invalid data record), after writing data, the DTC disappears.

📌 MQB new ACC 5Q0907561A: before writing data, there's a DTC “invalid data record”, after writing data, the DTC disappears.

📌 PQ Xenon 5M0907273F: before writing data, there's a DTC 10478040 (invalid data record), after writing data, the DTC disappears.

📌 PQ tire pressure monitor 3AA907273D: before writing data, there's a DTC 12652550 (invalid data record), the controller doesn’t work. After writing data, the DTC disappears, and you can set tire pressure on the dashboard.

📌 MQB new DCC 5Q0907376: before writing data, there's a DTC 813056 (invalid data record), after writing data, the DTC disappears.

📌 MQB parking assistance 5Q0919298K: before writing data, there's a DTC 10478040 (invalid data record), after writing data, the DTC disappears.

🔧 Essential Functions for Retrofitting and Maintenance:

🛠️ Many functions are very useful for retrofitting and maintenance, such as controller replacement, throttle adaptation, and EPB brake pad replacement. Additional functions will continue to be added.

📚 Built-in Database:

🧠 There is a built-in database in the diagnostic tool. Users can write data records without an online account. It already supports many controllers, and more data will be added continuously.

🔍 Iscancar Parameters:

⚡ Voltage: 5V USB / 12V OBD
📺 LCD resolution: 320×240
🔌 USB standard: USB2.0
🌡️ Working temperature: 0-60°C
📏 OBD cable length: 1.5 meters
🔋 Power consumption: 80mA/12V

💬 Technical Support:

👨‍🔧 The technical support team is professional and efficient, offering free online technical assistance.
🛠️ Lifetime after-sales service ensures customers can operate the device worry-free.
📝 Customer feedback and suggestions are taken seriously.

📦 Iscancar Package Includes:

1 x MM-007 Diagnostic Main Unit
1 x USB Cable

1 x Plastic Box
