HLTNC 110ST-M04030 M06020 1.2KW 220V AC Servo Motor Kit 3000Rpm 4N 6N Engine With T3DF RS485 Driver For CNC Engraver Router
HLTNC 110ST-M04030 M06020 1.2KW 220V AC Servo Motor Kit 3000Rpm 4N 6N Engine With T3DF RS485 Driver For CNC Engraver Router
871.99USD
436.00USD
Save 50%
Tax excluded
Delivered within 7-15 days
HLTNC 110ST-M04030 M06020 1.2KW 220V AC Servo Motor Kit 3000Rpm 4N 6N Engine With T3DF RS485 Driver For CNC Engraver Router
Secure
Stripe is known for its strong security measures. It uses encryption, tokenization
Free Shipping
FREE SHIPPING WORLDWIDE
Fast Shipping
We will try to deliver the product to you as soon as possible, just give us 1 or 2 weeks
Model |
Rated Power |
Voltage |
Rated Speed |
Brake |
RS485 |
|
1.2KW |
220v |
3000rpm |
optional |
optional |
||
1.2KW |
220v |
2000rpm |
||||
1.5KW |
220v |
3000rpm |
||||
1.5KW |
220v |
2500rpm |
||||
1.5KW |
220v |
1500rpm |
||||
1.8KW |
220v |
3000rpm |
||||
2KW |
220v |
2500rpm |
||||
2.3KW |
220v |
1500rpm |
||||
2.6KW |
220V or 380v |
2500rpm |
||||
3.8KW |
220v or 380v |
2500rpm |
||||
4.3KW |
380v |
1500rpm |
||||
5.5KW |
380v |
1500rpm |
||||
7.5KW |
380v |
1500rpm |
Click the Model To See More Details
Manual Needed, Please contact with us,we would send you the PDF manual.
|
|
|

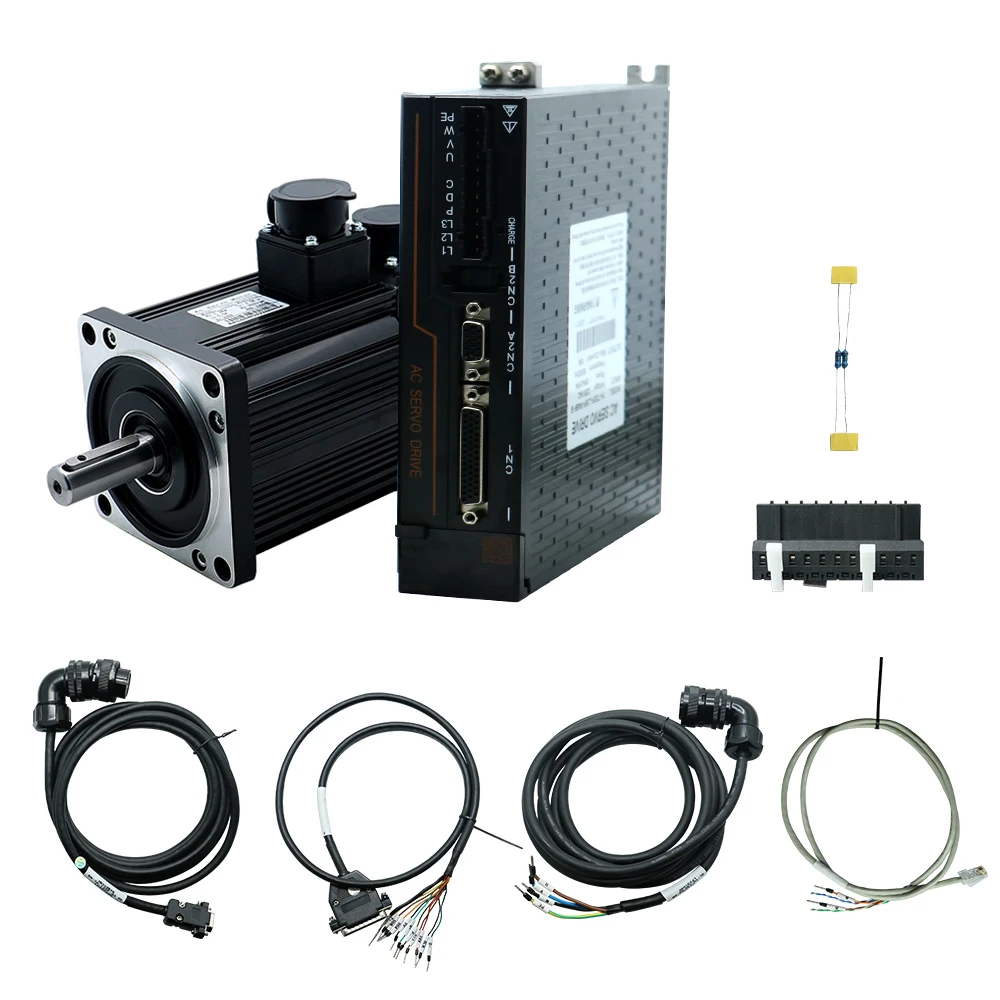

1 pcs 1.2kw 220v 110ST servo motor (4Nm or 6Nm) |
|
1 pcs T3DF-L30F-RABF Servo Driver (With RS485 Communication Port And Cooling Fans) |
|
1 pcs 3Meter Encoder Cable |
|
1 Pcs 3Meter Power Cable |
|
1 Pcs control signal Cable |
|
1 Pcs RS485 Cable |
|
2 Pcs 2K 1/4W resistance |
|
1. Stable performance and fast response |
|
2.Advanced heat dissipation design process |
|
3.Applicable to various automation equipment |
|
|

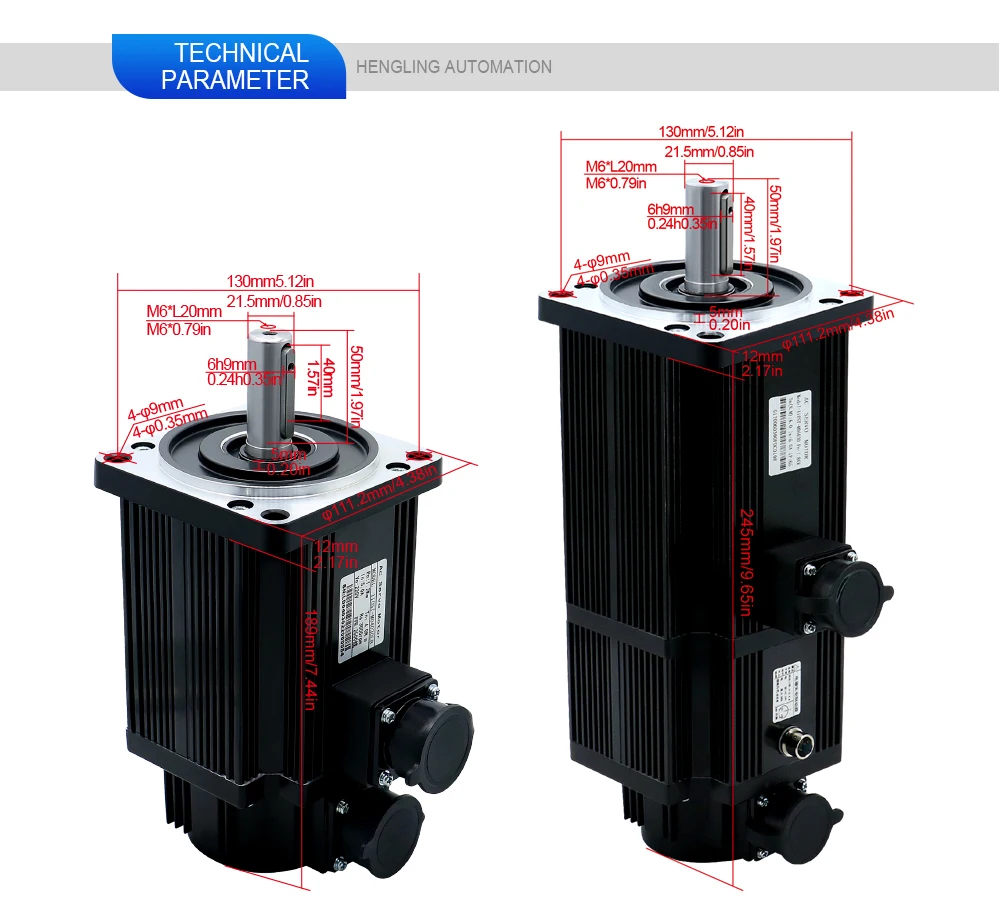

110ST-M04030/M06020 SERVO MOTOR (WITHOUT BRAKE) |
110ST-M04030/M06020 SERVO MOTOR (WITH BRAKE) |
Moror Model |
110ST-M04030 |
110ST-M06020 |
Rated Power (kw) |
1.2 |
|
Rated Voltage(v) |
220 |
|
Rated Current (A) |
5.0 |
4.5 |
Rated Speed(rpm) |
3000 |
2000 |
Rated Torque(N.m) |
4 |
6 |
Peak Torque(N.m) |
12 |
12 |
Voltage constant(V1000/min) |
54 |
83 |
Torque coefficient (N.m/A) |
0.8 |
1.3 |
Rotor inertia(Kg. mz) |
0.54*10^-3 |
0.76*10 |
Line-line resistance（Ω） |
1.09 |
1.46 |
Line-line Inductance(mH) |
3.3 |
4.7 |
Electrical time Constant(Ms) |
3.0 |
3.2 |
Weight( Kg) |
6 |
7.9 |
Encoder Line number (PPR) |
2500 |
|
Insulation class |
class F |
|
Safty class |
IP65 |
|
The Operation of Environmental Conditions |
Temperature: -20℃~+50℃ Humidity: Below 90% RH NO Dewing |
|||||||||||||||
Motor Winding Plue |
Winding Load Wire |
U(Red) |
V(yellow) |
W(blue) |
PE(yellow-green/black) |
|||||||||||
Plug Serial Number |
2 |
3 |
4 |
1 |
||||||||||||
Absolute Encoder socket (7Pin) |
Signal Lead Wire |
E- |
E+ |
SD- |
0V |
SD+ |
+5V |
PE |
||||||||
Plug Serial Number |
2 |
3 |
4 |
5 |
6 |
7 |
1 |
|||||||||
Photoelectric Encoder Plug (15Pin) |
Signal Lead Wire |
5V |
0V |
A+ |
B+ |
Z+ |
A- |
B- |
Z- |
U+ |
V+ |
W+ |
U- |
V- |
W- |
PE |
Plug Serial Number |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
1 |
|

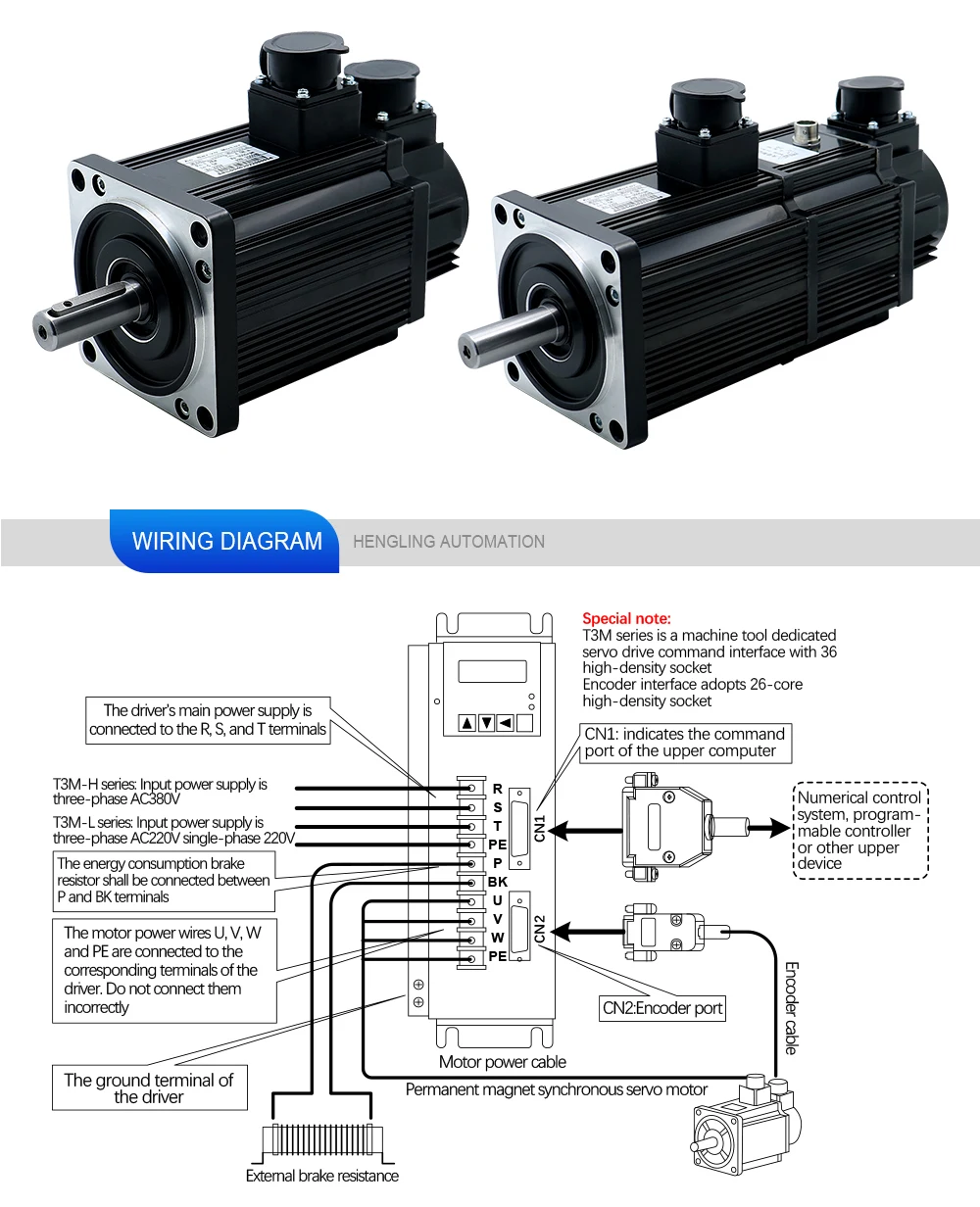

Name |
Terminal symbol |
Description |
Main loop power supply |
RST |
Connect to AC Power Supply Single / Three Phase AC 220v (85% - 110%) 50/60Hz |
Brake Resistance terminal |
P . BK |
when connecting the external brake resistance, it is connected in parallel with the internal resistor. please select suitable resistance value and power to avoid burning out the driver. |
Motor connection terminal |
U , V ,W |
Output to Motor |
Ground Terminal |
〨 or PE |
Ground |
Main informaton for T3DF driver
Main control signal |
Pulse(5v or 24v Pulse signal); analog voltage (0-10v); modbus RS485 |
Support System |
CNC, PLC Controller |
24V Pulse Signal |
P+ and D+ port connected with 2K 1/4W resistor, or the driver would be damaged |

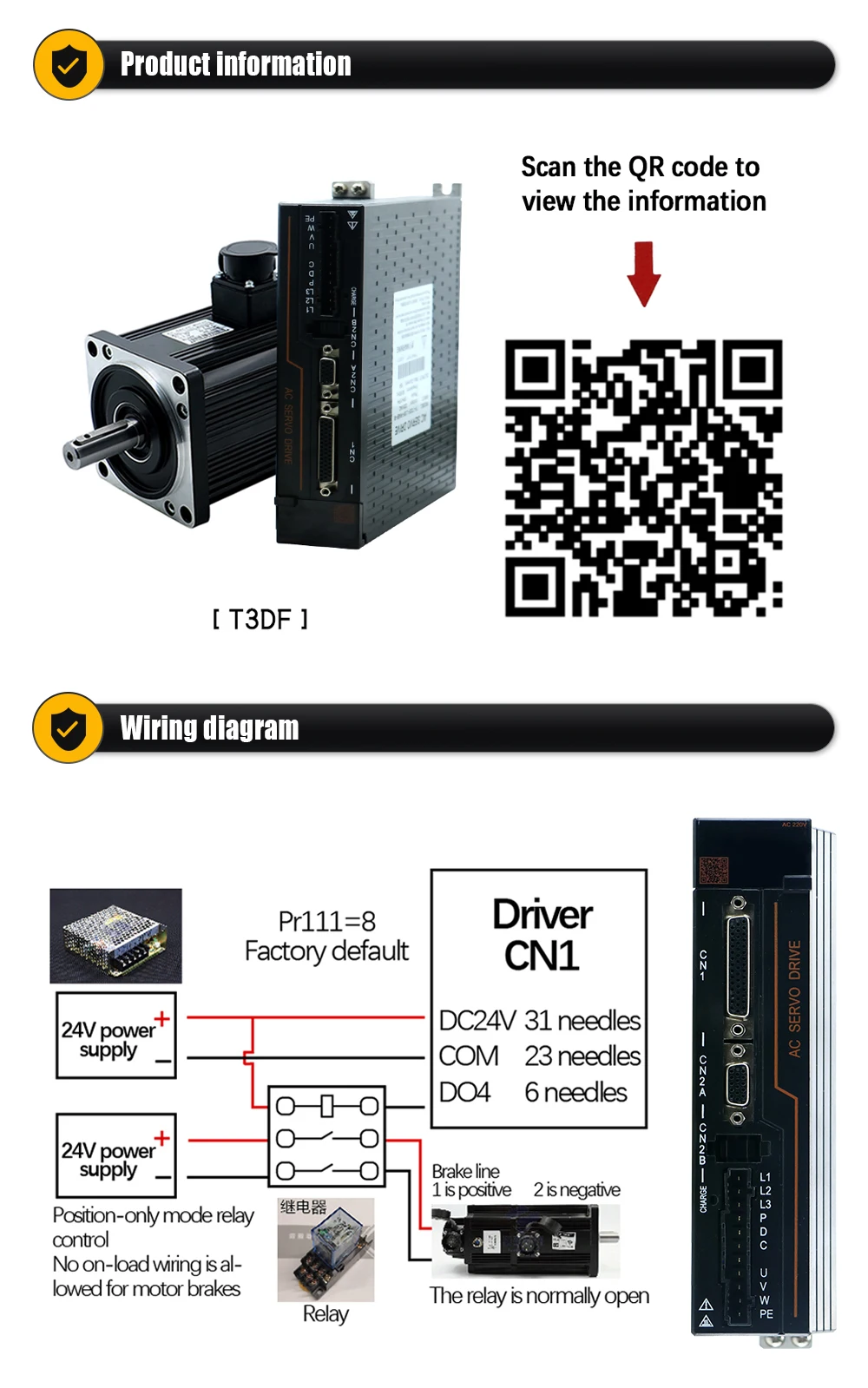

Motor With Brake |
the brake should be connected with 24v DC power supply and relay （see diagram below） |
Main setting |
P-000 set as 385 or 316 P-002 set according to the motor (details on manual) P-036 shaft rotate direction (1: reverse and 0:forward） P-098 （1：internal enable sigal and 0:external enable siganl） P-029 electric gea ratio （larger value，higer speed） long press E-SEF to show DONE,save parameter setting sucessfully, then restart the driver |
Torque overload protection |
P-065(Internal forward torque limitation 0-300% P-066(internal reverse torque limitation 0-300% P-070( alarm for forward torque overload P-070 (alarm for reverse torque overload |
Description of basic parameters of the T3L driver
Change P-000 to 385 (or 316)
Change P-002 to corresponding motor code (example: 80ST-M02430 corresponding parameter is 28)
E-DEF Press and hold to confirm that DONE is saved successfully
Change P-036 to 1 (opposite direction) 0 (positive direction) motor direction conversion parameter
Change P-098 to 1 (internal enable) 0 (external enable)
P-029 (Electronic gear ratio molecule)
P-030 (Electronic gear driver)
E-SEF Press and hold to confirm that DONE is saved successfully. Power off and restart after all parameters are set.
(The above parameters are conventional parameters. If you need to modify other parameters, please refer to the manual or contact technical/sales personnel)
The following parameters are rigid adjustment parameters, equipment no problem do not need to adjust
P-005 (Speed ring rigid)
P-009 (Position ring rigid)
P-006 (usually Max set to about 100)
P-019 (usually set to about 300 Max)
The specific adjustment of rigid parameters depends on the transmission structure and load of the equipment. What specific questions can contact the after-sales personnel for consultation.
