π§ CAN Bus Circuit Tester Box for Automotive Diagnostics π
- β Compatible with 12V and 24V electrical systems.
- β οΈ Tests the diagnostic port for faults like pin short-circuits or reversed polarity before connecting other tools.
- π Real-time display of communication signals on assigned pins for quick fault detection.
- β‘ Allows fast connection to all 16 pins during maintenance diagnostics.
- π Monitors input voltage and alerts in case of high or low voltage conditions.
- π Supports specific communication tests for different vehicle brands.
- π§° Can be used as a startup test box for bench diagnostics.
- π Replaces the need for a battery tool in some testing scenarios.
- π‘ Includes LED indicators to show polarity and signal status.
- π Rugged and portable design ideal for professional automotive technicians.
π Specifications:
- π Input Voltage: 9.0 - 32.0 VDC
- β‘ Maximum Load: 2.0 A
- π Resolution: 0.1 V
- π‘οΈ Overload Protection: Yes, PTC fuse (self-healing)
- π Reverse Polarity Protection: Yes, red LED on pins 4 and 5
- π‘ Supported Protocols: PWM (J1850), VPW (J1850), ISO 9141-2, DIS/ISO 14230-4, CAN (J-2284)
- π‘οΈ Operating Temperature: 0β to 50β, Humidity <70%
- π Cable Length: 70 cm (27.5 in) / 150 cm (59 in)
ID:3307
29.95USD
No tax
Delivered within 7-15 days
π§ CAN Bus Circuit Tester Box for Automotive Diagnostics π
- β Compatible with 12V and 24V electrical systems.
- β οΈ Tests the diagnostic port for faults like pin short-circuits or reversed polarity before connecting other tools.
- π Real-time display of communication signals on assigned pins for quick fault detection.
- β‘ Allows fast connection to all 16 pins during maintenance diagnostics.
- π Monitors input voltage and alerts in case of high or low voltage conditions.
- π Supports specific communication tests for different vehicle brands.
- π§° Can be used as a startup test box for bench diagnostics.
- π Replaces the need for a battery tool in some testing scenarios.
- π‘ Includes LED indicators to show polarity and signal status.
- π Rugged and portable design ideal for professional automotive technicians.
π Specifications:
- π Input Voltage: 9.0 - 32.0 VDC
- β‘ Maximum Load: 2.0 A
- π Resolution: 0.1 V
- π‘οΈ Overload Protection: Yes, PTC fuse (self-healing)
- π Reverse Polarity Protection: Yes, red LED on pins 4 and 5
- π‘ Supported Protocols: PWM (J1850), VPW (J1850), ISO 9141-2, DIS/ISO 14230-4, CAN (J-2284)
- π‘οΈ Operating Temperature: 0β to 50β, Humidity <70%
- π Cable Length: 70 cm (27.5 in) / 150 cm (59 in)
Secure
Stripe is known for its strong security measures. It uses encryption, tokenization
Free Shipping
FREE SHIPPING WORLDWIDE
Fast Shipping
We will try to deliver the product to you as soon as possible, just give us 1 or 2 weeks
π§ Detailed Description β English

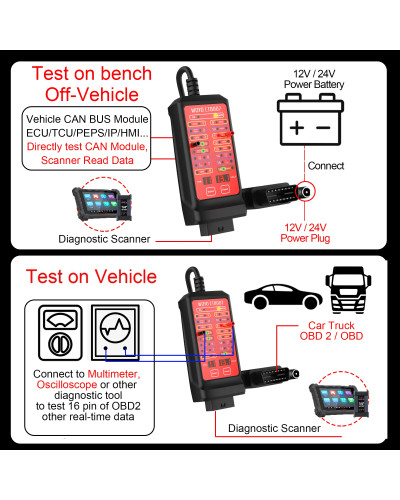

π This connection box is an essential tool for any workshop or technician requiring accurate and efficient diagnostics of vehicle electronic systems. Designed to provide a stable and secure connection, it allows direct interaction with electronic modules and internal communication systems, enabling fast fault detection and detailed circuit analysis.

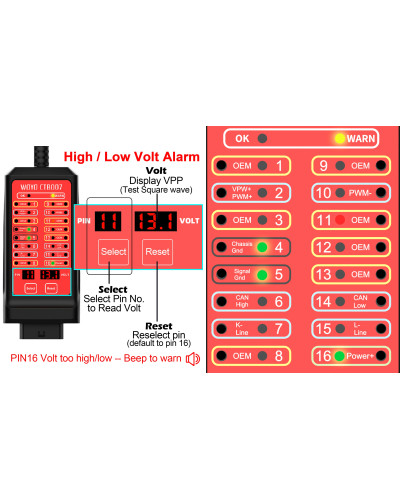

β‘ With its ability to measure voltage at each pin, this device emits acoustic alerts when it detects voltage out of the normal range, helping prevent component damage during diagnostics. It also features overload and reverse polarity protection, offering added safety for both the user and the equipment.

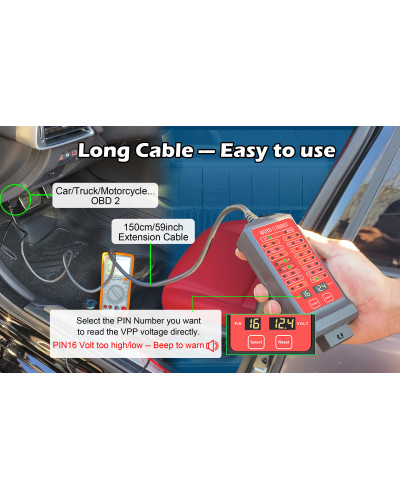

π Its design includes banana-type pins for easy and versatile connection with measuring tools such as multimeters and oscilloscopes, allowing thorough real-time analysis of electrical signals. The option for external power supply with 12V or 24V makes it possible to perform tests even on vehicles without a battery, expanding diagnostic and repair possibilities.
π οΈ Ideal for both bench testing and real vehicle conditions, this connection box is compatible with a wide variety of automotive electronic systems, facilitating preventive and corrective maintenance with greater speed and accuracy. Its robust construction and ease of use make it an indispensable tool for professionals seeking efficiency and reliability.
π In summary, this device is the perfect solution for those who need a complete and safe tool for verifying, diagnosing, and testing electronic modules and communication systems within the vehicle, ensuring professional work and reliable results in every task.
Verifique el significado de 16PIN en nuestro dispositivo.
Lista de paquetes:
1 * dispositivo principal
Pasador adaptador de 2*2,0 mm a 4,0 mm
Pasador de 10*2,0 mm
Puedes conectar todo tipo de herramientas de diagnΓ³stico.
Los pines gratuitos le permiten colocarlos de manera mΓ‘s estable al conectar nuestros pines para leer datos.
Cuando estΓ‘ insultado y necesita diagnosticar problemas con el sistema OBD del automΓ³vil a travΓ©s de otras herramientas, nuestra caja de ruptura y fijaciΓ³n de pasadores tipo banana pueden facilitarle el proceso de mantenimiento.
Nueva versiΓ³n: agregue fuente de alimentaciΓ³n adicional de 12 V/24 V.
Cuando se conecta al OBD del vehΓculo, pero CTB007 no funciona (el vehΓculo no pudo proporcionar energΓa),
Puede conectarse a una baterΓa de alimentaciΓ³n de 12 V/24 V al mismo tiempo para que funcione.
FunciΓ³n de supresiΓ³n:
1.Reemplace la fuente de alimentaciΓ³n auxiliar para
la baterΓa automotriz de 12V/24V.
2.Cuando tu coche no tiene baterΓa, pero quieres leer los datos del coche,
Puede conectarse a una baterΓa de alimentaciΓ³n de 12 V/24 V para alimentar el automΓ³vil.
Con cable de extensiΓ³n OBD de 75 cm/150 cm de largo
Paquete:
1 * caja de ruptura
1 * Manual
Pasador banana de 10*2mm
Pasador banana de 2*2mm a 4mm
1 * caja al por menor WOYO

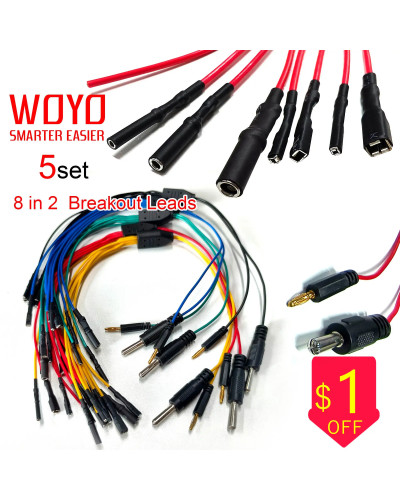

AquΓ hay un nuevo conjunto de cables de ruptura de ECU,
